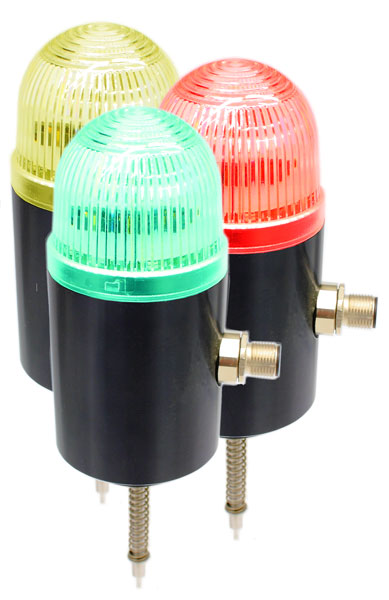

Type 2040 – Digital position indicator
The digital position indicator type 2040 from Schubert & Salzer for pneumatic valves with linear or swivel actuator convinces with its compact design, clear coloured light signalling and reliable end position feedback by an NPN switching signal, maintenance information and error messages. In addition, it is possible to read out maintenance information and error messages and to configure them universally via the Schubert & Salzer "DeviceConfig" software
| Application |
Position feedback signal for linear and rotary actuators |
| Nominal stroke |
6 - 29mm 0 - 90° |
| Protection class |
IP65 |
| Adjustment of stroke and zero point |
Self-adapting |
| Supply |
24 V DC |
| Output signals |
NPN contacts |
| Temperature range |
-20 °C up to +75 °C |
