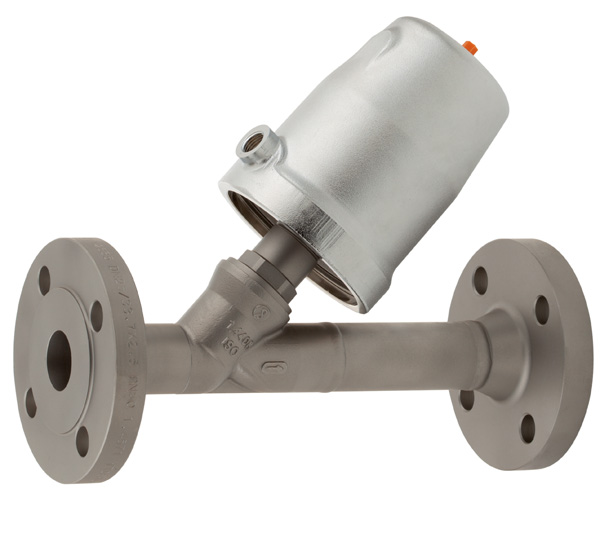

Type 7031 – Angle seat flange valve
Pneumatically operated angle seat flange valve for high switching powers.
In stainless steel design also suitable for neutral and aggressive media. The angled seat design offers a high flow rate, the flange connection offers easy installation.
-
Size:
DN 15 - DN 80
-
Pressure:
PN 40, ANSI#150, ANSI#300
-
Material:
Stainless steel 1.4408
-
Temperature:
Media temperature -30°C to +200 °C
Applications from -100°C up to +220°C
| Connection |
Flange acc. to DIN EN 1092-1 Flange acc. to ANSI #150, ANSI#300 |
| Accessories |
Limit switch Pilot valve Manual override . . . |
| Actuator variants |
Piston actuator of - Brass (chrome plated) - Stainless steel - Polymer Stainless steel diaphragm actuator |
| Application |
Gases, vapours, fluids |
| Versions |
Low temperature version Pressure balanced version Degreased version, Silicon or PTFE-free version … |
