Seat valves

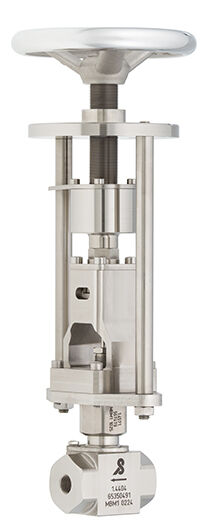

Type 7045 – Low flow valve

The low flow valve type 7045 with handwheel actuator for minimal flow rates and operating pressures up to 320 bar is suitable for gases and liquids in a variety of industrial applications.

  • Size

    Size:

    DN8 (1/4") and DN15 (1/2")

  • Pressure

    Pressure:

    PN 320

  • Material

    Material:

    Stainless steel 1.4404

  • Temperature

    Temperature:

    Media temperature: -60 °C to +210 °C

    Application from -60°C up to +530°C

Connection

Pipe thread acc. ISO 228-1

NPT thread acc. ANSI B1.20.1

Socket weld connection
Accessories

Limit switch

Metal bellows

...
Approvals, certificates and declarations

EC Declaration of Conformity

UKCA Declaration of Conformity
For details, see the documentation or upon request.
