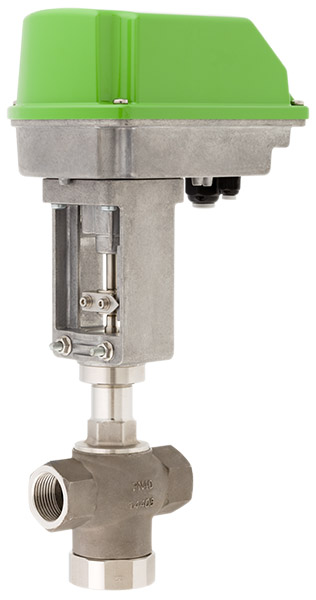

Type 7282 – Three-way motor valve made from stainless steel

Compact three-way motor valve made from stainless steel for on / off and control with neutral and aggressive media, on request with fail-safe option.
Size:
DN 15 - DN 50
Pressure:
PN 40
Material:
Stainless steel 1.4408
Temperature:
Media temperature -30°C to +200°C
Applications up to +220°C
Connection | Whitworth pipe thread NPT thread |
Accessories | Positioner electronics, limit switch, position feedback All control actuators are also available with fail safe feature. |
Actuator | Control force: 800 N Motor voltages: 24 V AC/DC, 230 V, 110/120 V Control: 3-point; (0)2-10V; (0)4-20mA |
Application | Gases, vapours, liquids |
Protection class | IP65 |
Supply | Different control functions such as distributing and mixing function Degreased version, Silicon or PTFE-free version … |
